SKU:CM-I27TNB

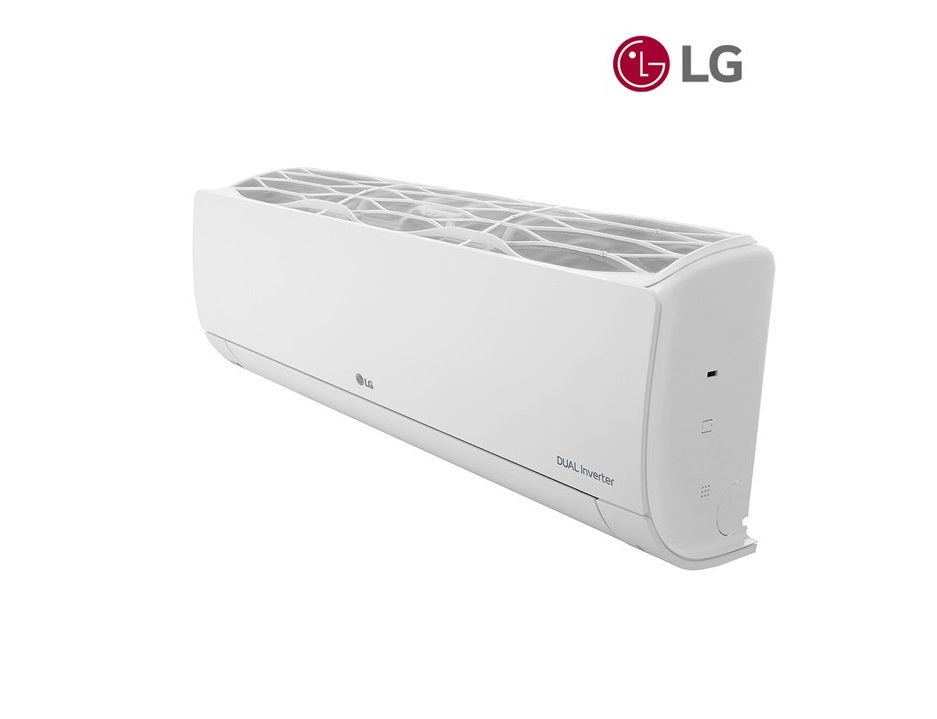

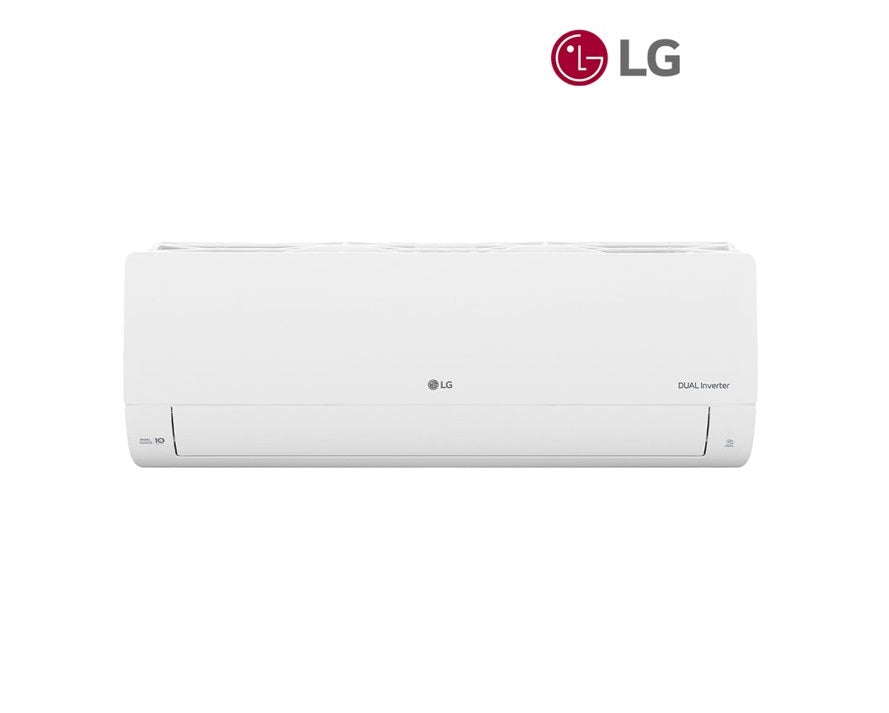

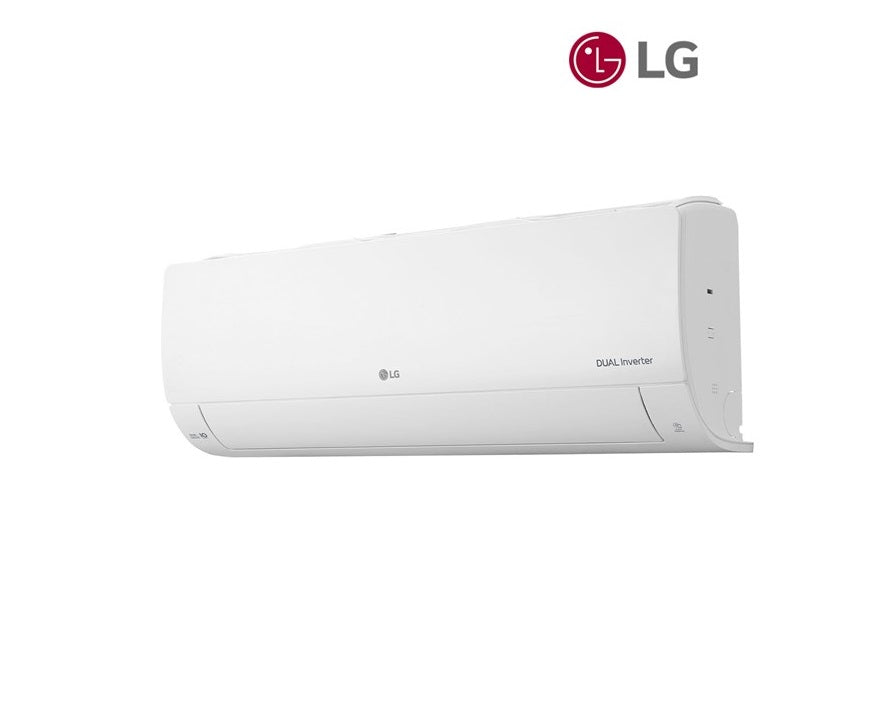

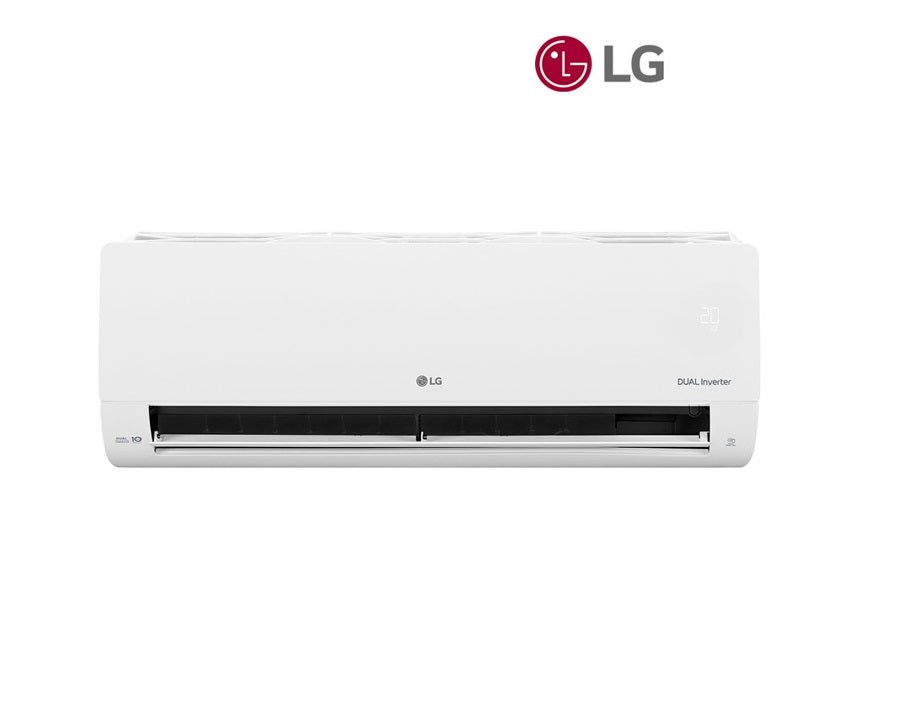

LG DUALCOOL Inverter AC 2 Ton, Faster Cooling, Energy Saving, Less Noise, I-27TNB, White
Dhs. 2,649.00 AED
Dhs. 2,649.00 AED
Dhs. 3,499.00 AED
Sale
Sold out
Tax included.
Shipping calculated at checkout.
In stock (1 units), ready to be shipped
Couldn't load pickup availability
About the Product
Key Features
- 65°C Dual Inverter Compressor™
- 10 Year Warranty
- 60% Faster Cooling
- 65% Energy Saving
- Comfort Sleep
- Gold Fin™
Please Note: We only Supply the Unit, Installation is Not included in Mentioned Price
CAPACITY
-
- Cooling - Min ~ Rated ~ Max(kW) : 0.900 / 6.450 / 7.474
- Cooling - Min ~ Rated ~ Max(Btu/h): 3070/ 22000 / 25500
-
- Cooling (T3) - Min ~ Rated ~ Max(kW): 0.790 / 5.420 / 6.740
- Cooling (T3) - Min ~ Rated ~ Max(Btu/h): 2700 / 18500 / 22000
POWER INPUT
-
- Cooling - Min ~ Rated ~ Max(W): 340 / 1818 / 2800
- Cooling (T3) - Min ~ Rated ~ Max(W): 404 / 2127 / 2800
RUNNING CURRENT
-
- Cooling - Min ~ Rated ~ Max(A): 1.65 / 8.10 / 14.00
- Cooling (T3) - Min ~ Rated ~ Max(A): 1.96 / 9.70 /14.00
EER
-
- EER(W/W)
- 3.55
- EER((Btu/h)/W)
- 12.10
EER(T3)
-
- EER (T3)(W/W)
- 2.55
- EER (T3)((Btu/h)/W)
- 8.70
ENERGY LABEL GRADE
-
- Cooling / Heating: 2
ANNUAL ENERGY CONSUMPTION
-
- Cooling / Heating(kWh/year): 4254
POWER SUPPLY
-
- Ø / V / Hz : 1, 220-240, 50
AVAILABLE VOLTAGE RANGE
-
- Available Voltage Range(V): 187 ~ 276
POWER FACTOR
-
- Cooling / Heating(%): 98
MOISTURE REMOVAL
-
- Moisture Removal(l/h): 2.50
INDOOR
-
- Air Flow Rate - Cooling, SH / H / M / L(m³/min): 19.0 / 14.0 / 12.5 / 10.0
- Sound Pressure Level - Cooling, H / M / L / SL(dB(A)): 45 / 42 / 38 / 29
-
- Dimensions (W × H × D) - Net(mm): 998 x 345 x 210
- Dimensions (W × H × D) - Shipping(mm): 1076 x 433 x 287
-
- Weight - Net(kg): 11.7
- Weight - Shipping(kg): 13.3
-
- Exterior Color Code: Munsell 7.5BG 10/2 (RAL 9016)
OUTDOOR
-
- Air Flow Rate - Max(㎥/min): 49.0
- Fan Motor Speed - Cooling, Min ~ Max(rpm): 190 ~ 900
-
- Sound Pressure Level - Cooling, Rated(dB(A)): 56
- Dimensions (W × H × D) - Net(mm): 870 x 650 x 330
-
- Dimensions (W × H × D) - Shipping(mm): 1040 x 710 x 455
- Weight - Net(kg): 43.600
-
- Weight - Shipping(kg): 47.100
- Max. Fuse Size(A): 25.000
-
- Exterior Color Code: Munsell 9.54Y 8.34/1.31 (RAL 9001)
- Operation Range - Cooling(℃ DB): 18 ~ 54
CIRCUIT BREAKER
-
- Circuit Breaker(A)
- 25
POWER SUPPLY CABLE
-
- Power Supply Cable(No. × ㎟)
- 3 x 2.5
POWER SUPPLY TO UNIT
-
- Power Supply to Unit
- Outdoor
POWER AND COMMUNICATION CABLE
-
- Power and Communication Cable(No. × ㎟)
- 4 x 0.75
PIPING
-
- Size - Liquid(mm)
- Ø 6.35
- Size - Gas(mm)
- Ø 15.88
-
- Connections Method - Indoor / Outdoor
- Flared / Flared
DRAIN HOSE SIZE
-
- O.D, I.D(mm)
- 21.5, 16
BETWEEN INDOOR & OUTDOOR
-
- Piping Length - Min / Standard / Max(m)
- 3 / 5 / 30
- Piping Length - No Charge(m)
- 7.5
-
- Max. Elevation Difference(m)
- 25
- Piping Connection Heat Insulation
- Both liquid and Gas Pipes
REFRIGERANT
-
- Type
- R410A
- Pre Charge(kg)
- 1.480
-
- Additional Charge(g/m)
- 20
- Control
- Electronic Expansion Valve
-
- Global Warning Potential
- 2087.5
- t-CO₂ eq
- 3.090
DEFROST METHOD
-
- Defrost Method
- Reverse Cycle
TOOL CODE(CHASSIS)
-
- Indoor / Outdoor
- SK / U24A
COMPRESSOR
-
- Type
- Twin Rotary
- Model
- DKT176MAJ
-
- Motor Type
- BLDC
- Oil Type / Maker
- PVE (FVC68D) / IDEMITSU
-
- Oil Charge (cc)
- 470
- Manufacturer / Country of Origin
- LG Electronics / China
FAN(INDOOR)
-
- Type
- Cross Flow Fan
- Motor Output(W)
- 60
FAN(OUTDOOR)
-
- Type
- Propeller, Fan
- Motor Type
- BLDC
-
- Motor Output (W)
- 85
- Motor Insulation
- Class E
-
- Motor Enclosure / Ingress Protection
- TEAO / IPX4 / 0
HEAT EXCHANGER
-
- Evaporator - Material, Tube / Fin
- Cu / Al
- Evaporator - (ø x Row x Column x FPI x L) x Qty.(#1)
- (ø7 x 2 x 16 x 20 x 744) x 1
-
- Evaporator - Corrosion Protection
- PCM
- Evaporator - Fin Type
- Wide Louver Plus
-
- Condenser - Material, Tube / Fin
- Cu /Al
- Condenser - (ø x Row x Column x FPI x L) x Qty.(#1)
- (ø 7 x 2 x 28 x 14 x 940) x 1
-
- Condenser - Corrosion Protection
- Gold
- Condenser - Fin Type
- Wide Louver Plus
